Dual spindle Swiss-type lathe SZ-256EN
Model：SZ-256EN
Features
●New upgrade EN series single spindle, higher rigidity! More stability!
●It is easy to switch between two processing modes: guide bush mode and no guide bush mode.
●Modular design, can be loaded with a variety of tools.
●Maximum processing diameter 20mm/26mm
●The spindle adopts high-speed motorized spindle, whose electromagnetic energy is directly converted into mechanical energy without transmitting power loss,
and realizes the high speed of the spindle, and the power curve at both ends realizes low speed and high torque output.
●Adopt new heat source cooling scheme, centralize cooling of motorized spindle and power head, and use heat exchanger to reduce temperature rise of electric cabinet.
Product Details
Processing application：
Medical equipment, hardware tools, textile machinery, electronic communication, aerospace, etc.
| Model | SZ-206EN 6 axis, dual spindle | SZ-256EN 6 axis, dual spindle | |||

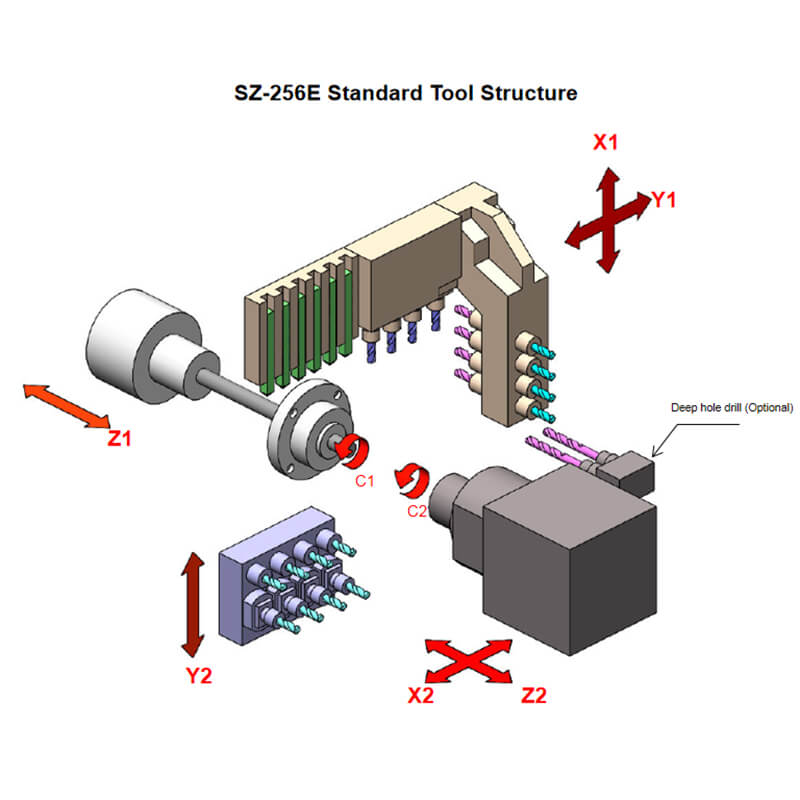

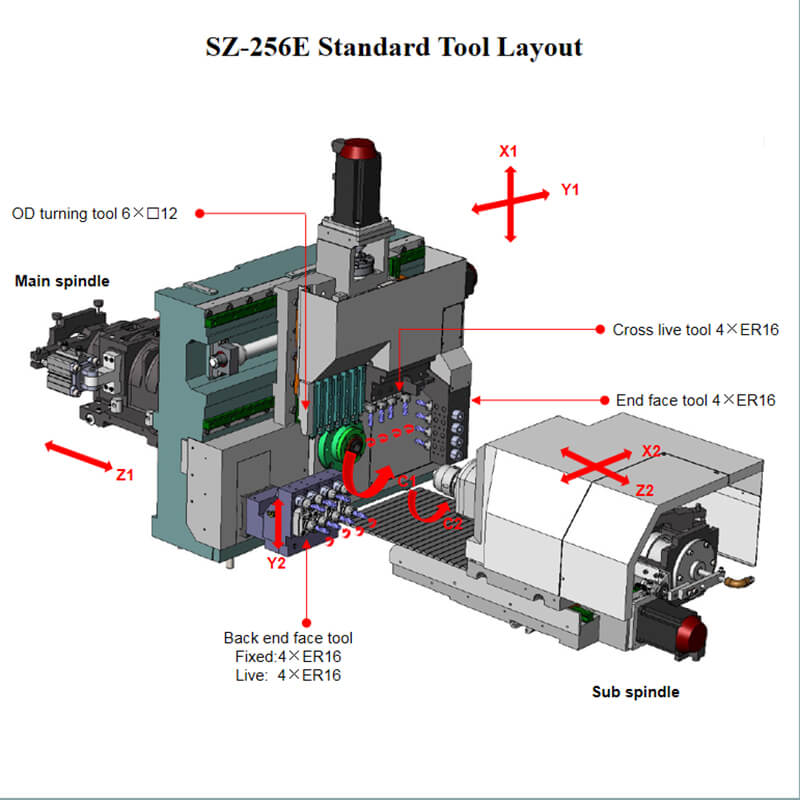

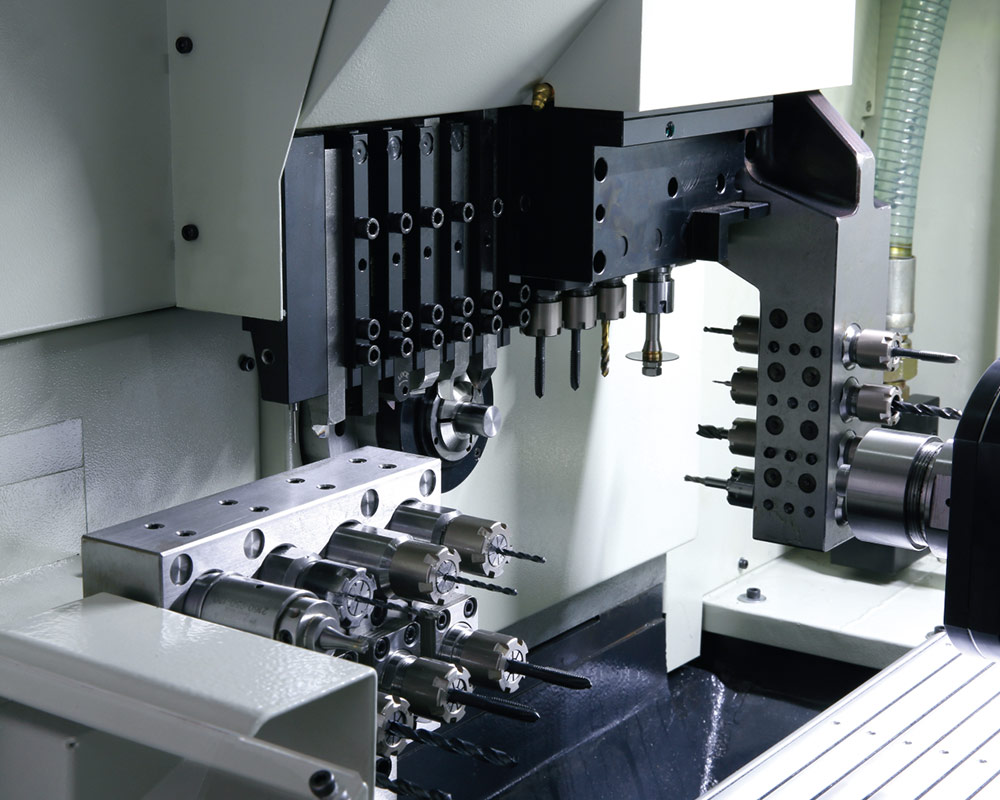

| Cutting-tool layout sketch |  |  | |||
| NC device | Mitsubishi M80 | Mitsubishi M80 | |||
| Power source | 220VAC | 220VAC | |||
| Lathe rated power | Kw | 11 | 11 | ||
| Machining range | Max machining dia. | mm | φ20 | φ25 | |
| Main spindle max clamping dia. | mm | φ20 | φ25 | ||
| Max feed length (once) | mm | Max 240 | Max 240 | ||
| Main/sub spindle | Main spindle power | Kw | 2.2/3.7 | 2.2/3.7 | |
| Sub spindle power | Kw | 1.5/2.2 | 1.5/2.2 | ||
| Main spindle max through hole dia. | mm | Max φ27 | Max φ27 | ||
C axis resolution | ° | C1/C2 0.001° | C1/C2 0.001° | ||
Main/sub spindle rev speed | rpm | Max10000/12000 | Max10000/12000 | ||
Sub spindle max clamping dia. | mm | Max φ20 | Max φ20 | ||
Sub spindle max through hole dia. | mm | Max φ27 | Max φ27 | ||
| Main spindle max travel | With guide bush | mm | 240 | 240 | |
| Non guide bush | mm | 355 | 355 | ||
| Max tool installed qty. | pcs | 26 | 22 | ||
| OD Turning tool | Qty.×Model | 6×□12 | 6×□12 | ||
| Cross live tool | Qty.×Model | 4×ER16 | 4×ER16 | ||
| Drilling dia. | mm | Max Φ10 | Max Φ10 | ||
Tapping/Threading die dia. | Max M8 | Max M8 | |||
Live tool rev speed | rpm | Max 5000 | Max 5000 | ||
| Live tool power | Kw | 1 | 1 | ||
| End-face tool （Main spindle） | Fixed | Qty.×Model | 4×ER16 | 4×ER16 | |
| Drilling dia. | mm | Max φ10 | Max φ10 | ||
| Tapping/Threading die dia. | Max M8 | Max M8 | |||
| Live | Qty.×Model | - | - | ||
| Drilling dia. | mm | - | - | ||
| Tapping/Threading die dia. | - | - | |||
Live tool rev speed | rpm | - | - | ||
| Live tool power | Kw | - | - | ||
| Back end-face tool （Sub spindle） | Fixed | Qty.×Model | 4×ER16 | 4×ER16 | |
| Drilling dia. | mm | Max φ10 | Max φ10 | ||
| Tapping/Threading die dia. | Max M8 | Max M8 | |||
| Live | Qty.×Model | 4×ER16 | *4×ER16 | ||
| Drilling dia. | mm | Max Φ10 | Max φ10 | ||
| Tapping/Threading die dia. | Max M6 | Max M6 | |||
Live tool rev speed | rpm | Max 5000 | Max 5000 | ||
| Live tool power | Kw | 1 | 1 | ||
| Rapid feed speed | m/min | 30(Z1/Z2/X2/Y) 24(X1)15(Y2) | 30(Z1/Z2/X2/Y) 24(X1)15(Y2) | ||
| Feed motor power | Kw | 1(Z1/Z2/X1/X2/Y1)0.4(Y2) | 1(Z1/Z2/X1/X2/Y1)0.4(Y2) | ||
| Cutting oil pump power | Kw | 0.4 | 0.4 | ||
Main/sub spindle cooling oil pump power | Kw | 0.12 | 0.12 | ||
| Lubricating oil pump power | Kw | 0.004 | 0.004 | ||
| Max collecting length of workpieces collect box | mm | 80 | 80 | ||
| Main/sub spindle center to the bottom of lathe body | mm | 1050 | 1050 | ||
| Cutting oil tank volume | L | 180 | 180 | ||
| Net weight | Kg | 2700 | 2700 | ||
| Dimensions(L×W×H) | mm | 2178×1278×1780 | 2178×1278×1780 | ||
1. OD Turning tool length：125mm
2.*4×ER16: Standard 2 live and 2 fixed tool holder (Option: 4 live tool holder)
Technical parameters are subject to change without prior notice
| 20/25 series | ||
| OP system | SYNTEC 22TB/220TB | FANUC Oi-TF Plus |
| Power source | 380VAC | 200VAC |
| Live tool power | 1Kw | 0.75Kw |
| Live tool rev speed | 5000rpm | 4000rpm |
| Feed motor power | 1.0Kw(Z1/Z2/X1/X2/Y1)0.4（Y2） | 0.75Kw(Z1/Z2/X1/X2/Y)0.5（Y2） |
| Rapid feed speed | 30(Z1/Z2/X2/Y) 24(X1),15（Y2） | 30(Z1/Z2/X2/Y) 24(X1),15（Y2） |
